How Do You Properly Install an R8 Collet on Your Machine?

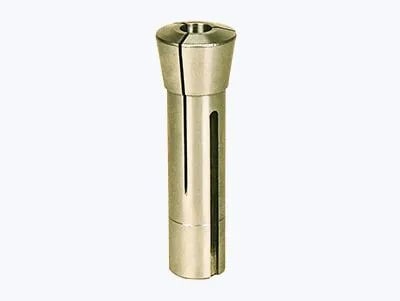

The R8 collet is one of the most commonly used collet systems in milling operations, particularly on manual and CNC machines. Its unique design allows for precise toolholding and easy setup, making it a go-to choice for machinists and hobbyists alike. However, knowing how to properly install an R8 collet is crucial to achieving accurate machining results and maintaining equipment longevity. In this article, we’ll guide you through the process of properly installing an R8 collet on your machine.

1. Preparation: Gather Your Tools and Safety Gear

Before you begin, ensure you have all the necessary tools at hand. You'll need:

• The appropriate R8 collet for your tool or workpiece size
• An R8 collet nut
• A spanner wrench or other suitable tool to tighten the collet nut
• Safety goggles and gloves for personal protection

2. Ensure the Spindle Is Clean and Free of Debris

Before inserting the R8 collet into the spindle, make sure that you use quality collets and also the inside of the spindle taper is clean and free of any dirt, chips, or old lubrication. Use a soft rag or compressed air to clean the spindle, ensuring there’s no buildup that could interfere with the proper fit of the collet. A clean spindle also ensures the collet seats correctly, minimizing the risk of vibrations or uneven toolholding.

3. Select the Correct Size R8 Collet

R8 collets come in various sizes to accommodate different tool diameters. Ensure you choose the right collet for the tool you're planning to use. Each R8 collet will typically have a specific range, for example, an R8 collet might fit tools between 1/8" and 1/2". Using the correct size ensures the tool is securely held in place, reducing the risk of slippage during machining.

4. Insert the R8 Collet into the Spindle

Gently slide the R8 collet into the spindle taper. You’ll notice that the collet fits into place with a slight tapering effect, ensuring it’s properly seated. Be sure not to force the collet into position, as this could damage the collet or the spindle. A light twist or tapping with a soft mallet can sometimes help guide the collet into place if it feels snug.

5. Place the Tool in the Collet

Once the R8 collet is securely in the spindle, insert your cutting tool or accessory into the collet’s open end. Ensure that the tool is fully inserted and positioned so that the entire length of the tool shank is held by the collet. The tool should sit evenly within the collet’s grip to ensure proper alignment during operation.

6. Tighten the R8 Collet Nut

Next, slide the R8 collet nut over the collet and begin tightening it by hand. Once the nut is hand-tight, use a spanner wrench or a suitable tightening tool to securely fasten the nut onto the collet. Tighten the nut until the tool is held firmly, but avoid over-tightening, as this could cause damage to the collet or the tool.

7. Check for Secure Fit

After installation, double-check that the collet is firmly in place and the tool is secure. Give the tool a gentle tug to ensure there’s no slippage, and verify that the tool is centered and aligned. If there’s any play or wobbling, you may need to recheck the collet seating or the nut’s tightness.

Conclusion

Installing an R8 collet correctly is vital for ensuring smooth, accurate machining operations. By following these steps and taking care to clean your spindle, select the right collet, and tighten the nut properly, you can enjoy reliable toolholding and improved machining results. Always remember to use the correct size collet and regularly inspect the components to maintain optimal performance.
